Fiberglass / Polyester Laid Scrim


Introduction:

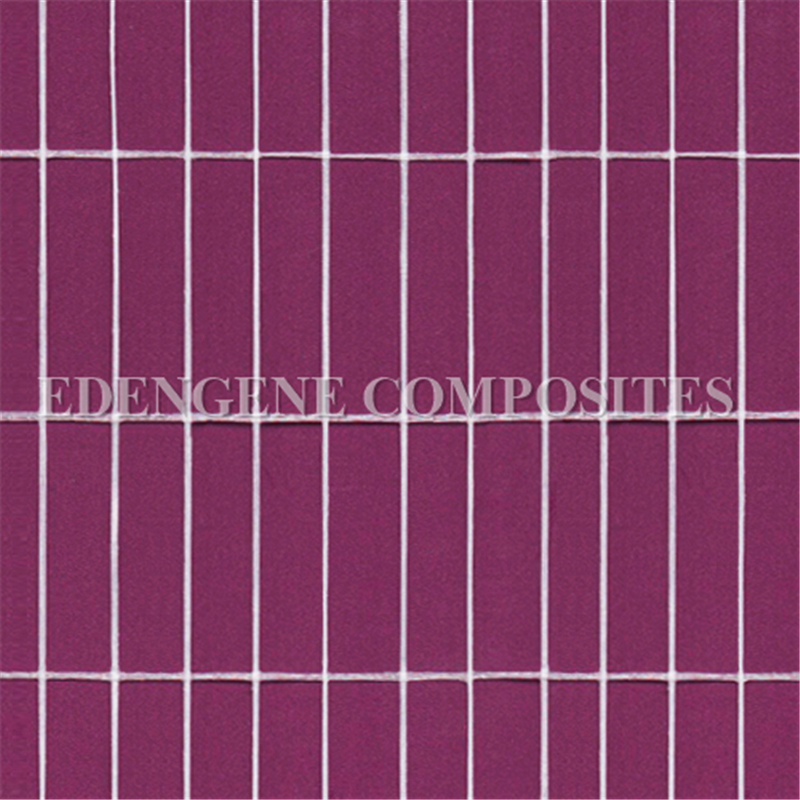

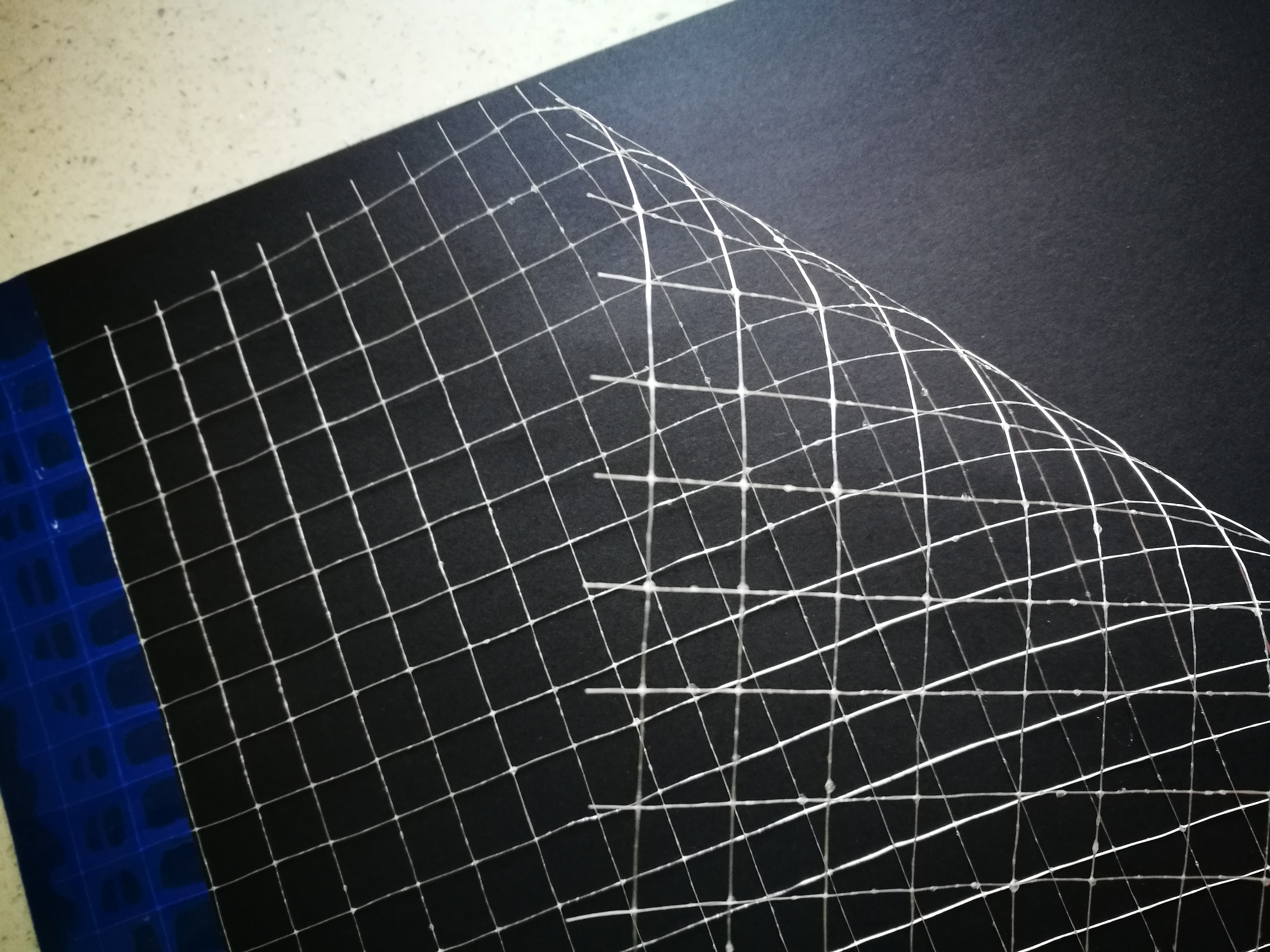

This laid Scrim is a kind of economic reinforcing non-woven fabric made from continuous filament yarn(Fiberglass, or Polyester etc.) in square shape of an open mesh instruction with an ultra-light mass unit weight, which generally applies to increase tear strength, dimensional stability, facilitate handling or act as a carrier of adhesive to be used in secondary bonding. It is typically applied when woven fabrics are too heavy and knitted products are too pliable for the application.


The scrim producing process by chemically bonds non-woven yarns, also are able to enhancing the scrim with a unique glass/polyester veil, that allows for various customized demands.


Features and benefits:

Dimensional stability                        • Tear resistance

• Tensile strength                                 • Water resistance

• Fire resistance                                    • Antibacterial


Applications:

• Composite reinforcements              • Packaging

• Flexible membranes                          • Flooring reinforcement
• Insulation                                            • Roofing and water-proofing

• Wall reinforcements                         • other customized applications


General information:

Items

Scrim Characteristics

Roll   Width

Max. 5,000mm and as customized

Roll   Length

Up to 20, 000 Meters

Filament   yarns

Fiberglass, Polyester etc.

Pattern  construction

Bidirectional, Tri-directional (Diamond shape)

Structural  size

Customized

Tensile   Strength

Depends on technical specifications

Bonding

Environmental PVOH, PVAC, PVC, SBR and others

Materials  for lamination

Nonwoven glasss/PET/Hybrid fiber Veil, Tissue,  Paper etc.
