Polyester GeoComposite Coated Bitumen
PET Geocomosite bitumen coated
涤纶浸胶复合土工布
Instroduction

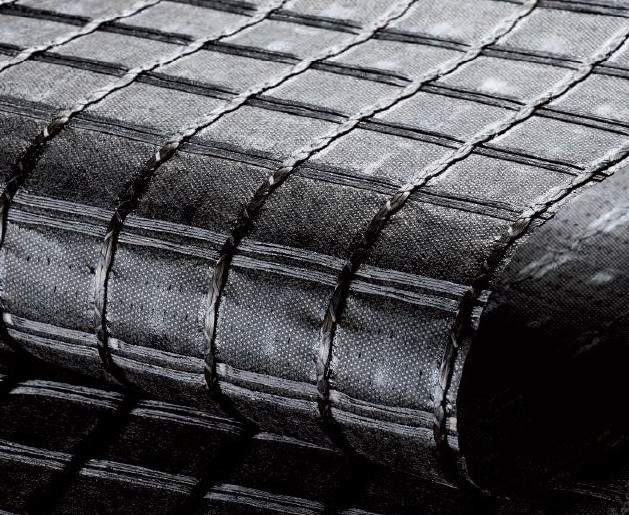

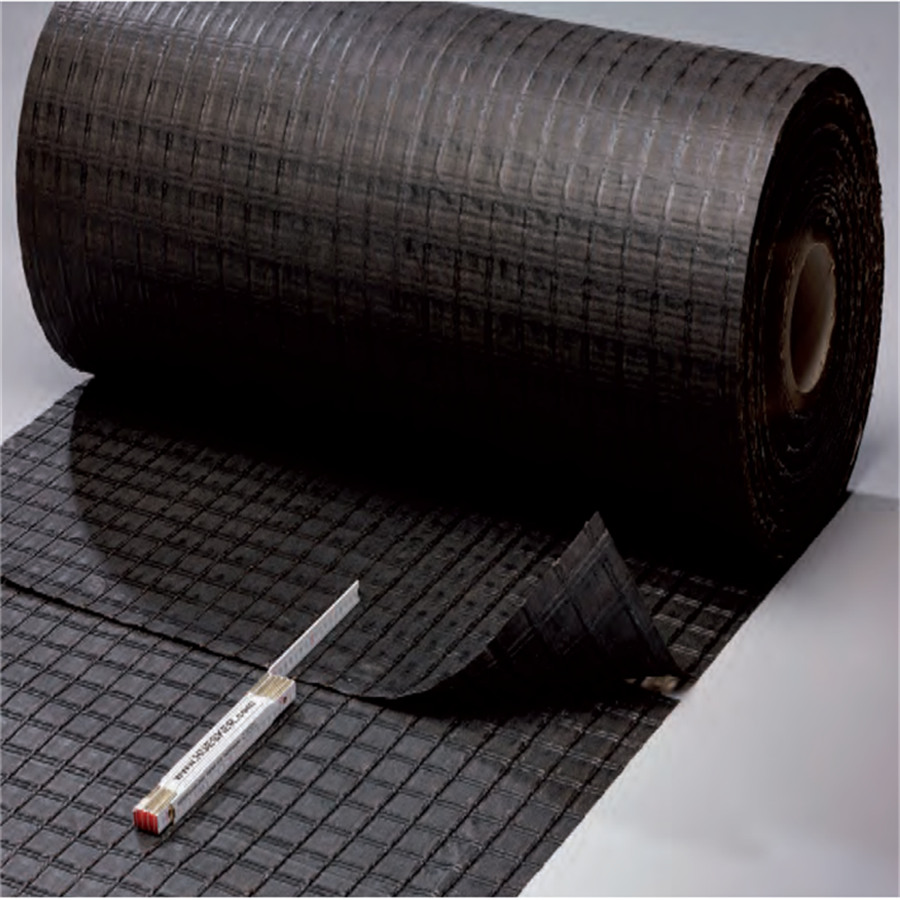

ECL PET GeoComposite coated bitumen is an asphalt reinforcement composite which combines a high modulus polyester geogrid with a lightweight non-woven paving geotextile. This composite is coated with bitumen to ensure strengthen the excellent bonding with the asphalt layers. Geocomposite combines with the asphalt layer to increase the tensile strength, thereby reducing tensile stress peaks and reflective cracking is also reduced, because asphalt having similar thermal expansion properties.
ECL PET Geocomposite reduces maintenance costs and extends the service life of the overlay.
Features:
Flexible, high-strength,
Good resistance to shear force while installing damages
Temperature-resistant asphalt
Reinforcing grid with a bituminous coating
Applications:

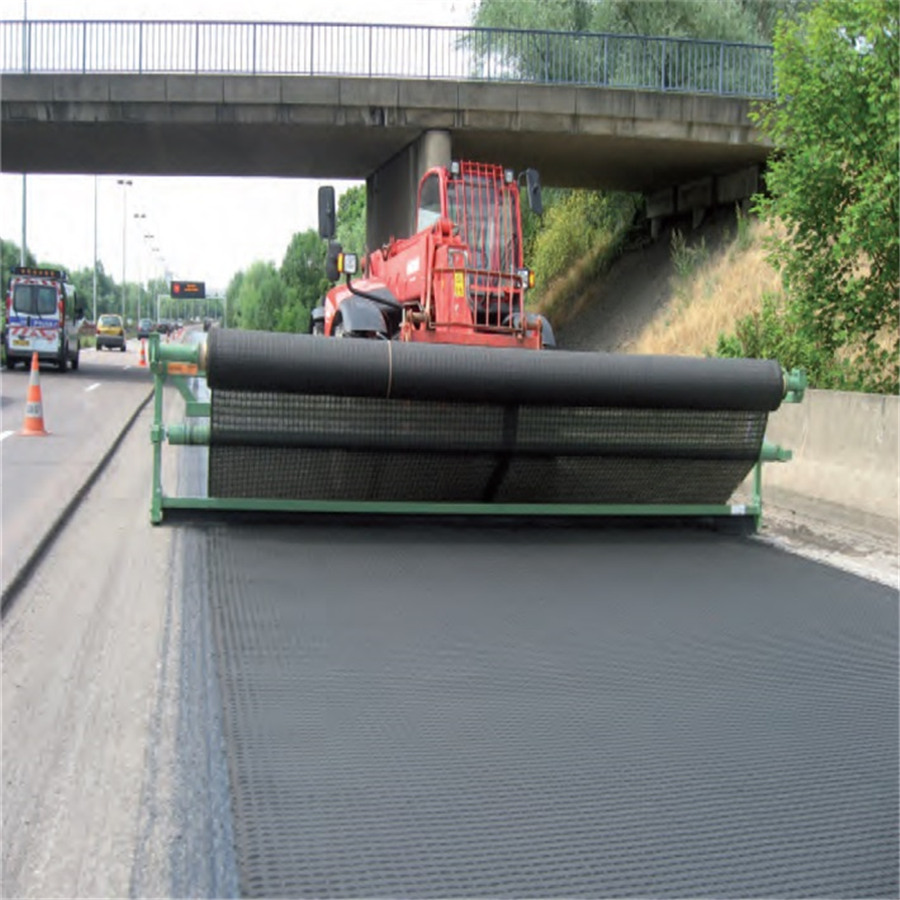

■ Surface course reinforcement ■ Crack prevention and road repair
■Asphalt or Concrete resurfacing ■ Airport Construction
Technical Specification:
Item Properties | Unit | PET-30/30C | PET-50/50C | PET-75/75C | PET-100/100C |
Materials | / | Polyester Filament + Nonwoven Geotextile | |||
Nonwoven | / | 40g Ultra Light nonwoven | |||
Coating | / | Polymeric Modified Bitumen | |||
Mesh size of Grid | mm | 25.4 x 25.4 or 40 x 40 | |||
Ultimate Tensile Strength MD x CMD | KN/M | 30 x 30 | 50 x 50 | 75 x 75 | 100 x 100 |
Elongation at Ultimate | % | 12 | 12 | 12 | 12 |
Tensile Strength at 5% Strain MD x CMD | KN/M | 14 | 24 | 35 | 46 |
Roll Width | M | 5.0 Max. | |||
Roll Length | M | 50 - 100 | |||
