Glass GeoComposite Coated Bitumen
Glass GeoComposite coated Bitumen GC-5050C
- Asphalt Reinforcement Paving Geogrid
Instruction:

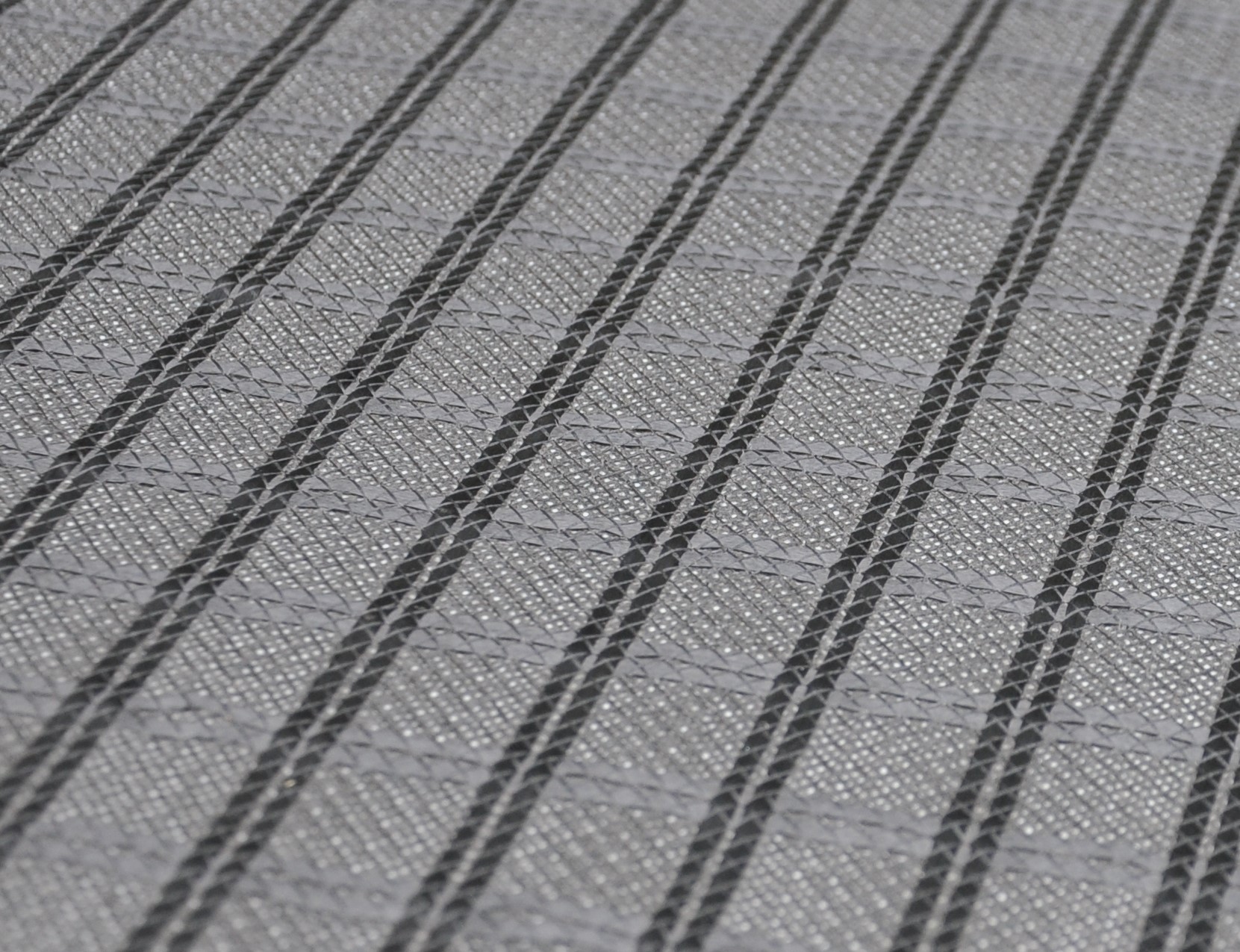

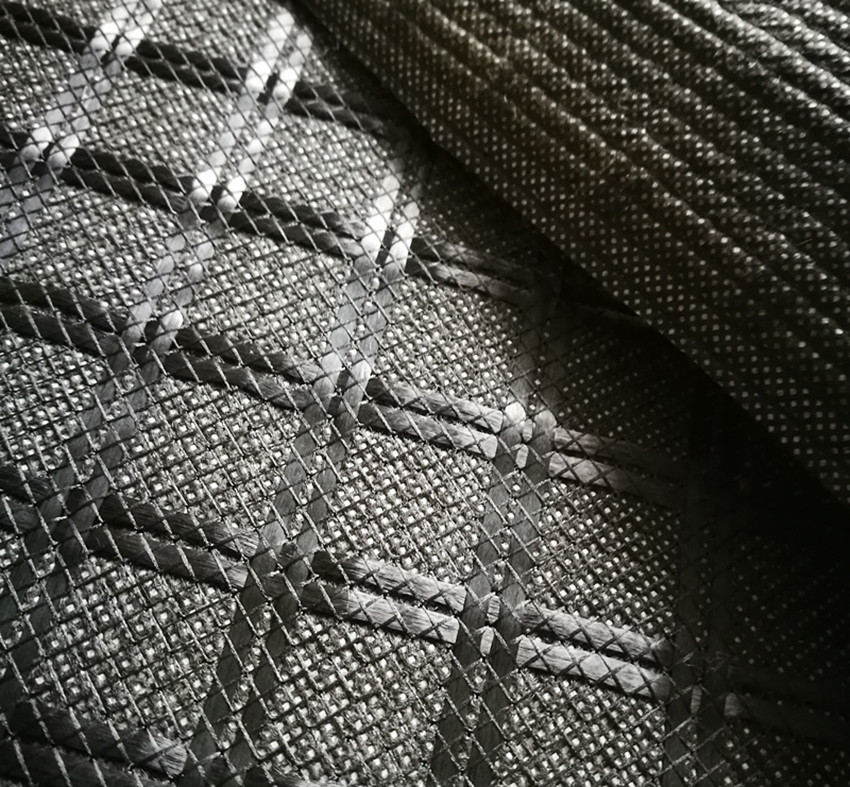

ECL Glass GeoComposite coated bitumen is an asphalt reinforcement composite which combines a high tensile E type Fiberglass grid with a lightweight non-woven by warp-knitting processing. Then both of them coated with modified bitumen to strengthen the bond with the asphalt layers.
This geogrid composite provides excellent performance in stress relief and to prevent reflective cracking in asphalt overlays. ECL Geocomposite reduces maintenance costs and extends the service life of the overlay.
This Glass GeoComposite already CE Approved by BTTG, UK
Applications:
- Surface course reinforcement - Cracks prevention and road maintanance and repair

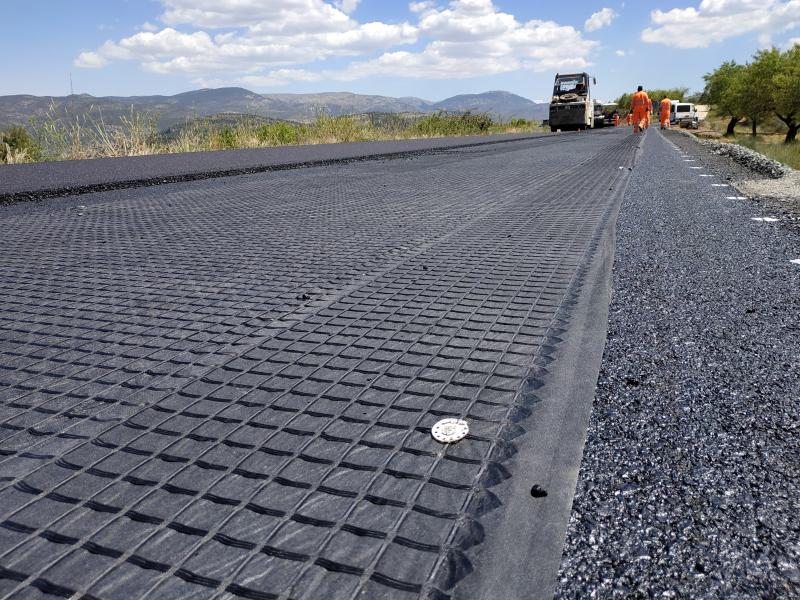

- Asphalt or Concrete road resurfacing - Airport Construction
Features:
- High-strength, low elongation
- High asphalt absorption / retention
- Good separation against moisture and gases to road base.
- Better bonding strength with surface layers.
- Easy installation and save labor cost.
Technical Specification:
Item Properties | Unit | GC-30/30C | GC-50/50C | GC-100/100C | GC-120/120C |
Materials | / | Fiberglass Yarns + PP Nonwoven | |||
Nonwoven | / | 120g Light nonwoven | |||
Coating | / | Modified Bitumen | |||
Mesh size of Grid | mm | 25.4 x 25.4 or 40 x 40 | |||
Ultimate Tensile Strength | KN/M | 30 x 30 | 50 x 50 | 100 x 100 | 120 x 120 |
Elongation at Ultimate | % | <3 | <3 | <3 | <3 |
Roll Width | M | 5.95 Max. | |||
Roll Length | M | 50 - 100 | |||
