Fiberglass GeoComposite
Glass GeoComposite
Instruction:

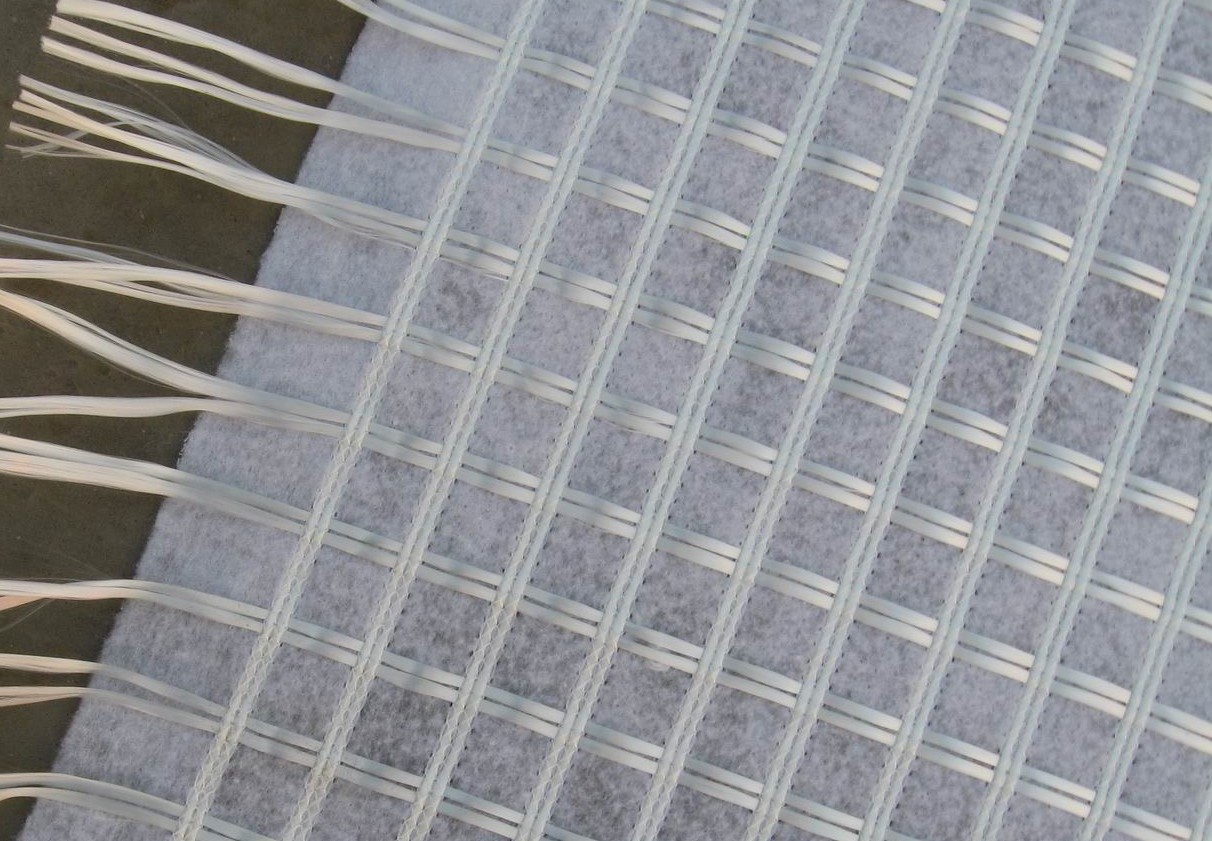

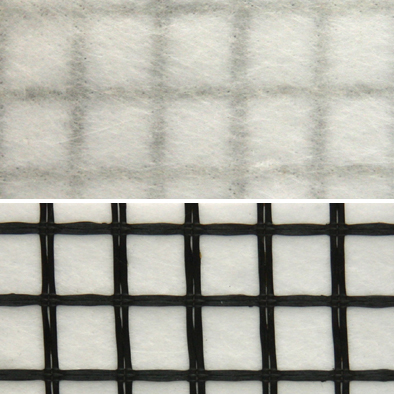

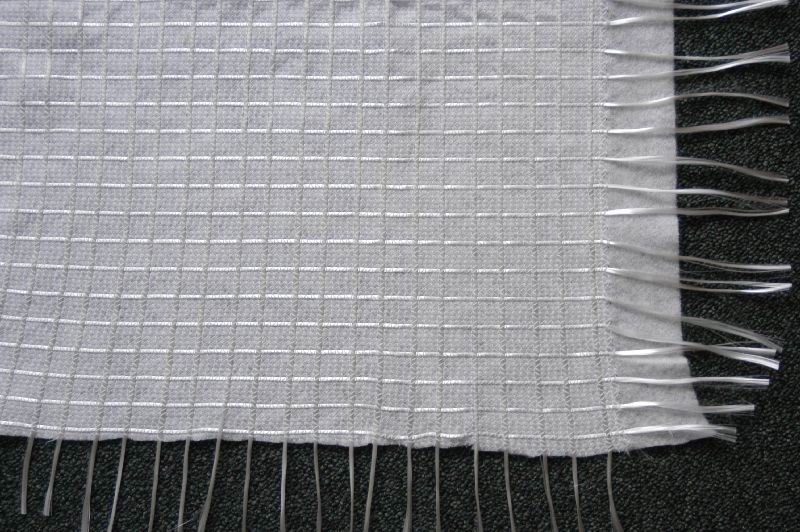

ECL Glass GeoComposite is a composite of glass filaments bonded to nonwoven geotextile by warp-knitting, used for stress relieving of road structures and for the reinforcement and protection of asphalt courses against cracking, plus improving durability of road.
with its sealing and uniform bonding - and the glass filament reinforcement provides effective maintenance and leads to a sustainable reduction in new crack formation. This Glass Geocomposite is a cost effective multifunctional solution in road repair. And its performance is similar to TenCate PGM-G series.
Applications:
- Surface course reinforcement - Crack prevention and road repair
- Asphalt or Concrete resurfacing - Airport Construction
Features:
- High-strength, low elongation
- High asphalt absorption
- Good separation against moisture and gases to road base.
- Better bonding strength with surface layers.
- Easy installation and save labor cost.
Technical Specification:
Item Properties | Unit | GC-30/30 | GC-50/50 | GC-100/100 | GC-120/120 |
Materials | / | Fiberglass Yarns + PP Nonwoven | |||
Nonwoven | / | 120g Light nonwoven | |||
Coating | / | non-coating | |||
Mesh size of Grid | mm | 25.4 x 25.4 or 40 x 40 | |||
Ultimate Tensile Strength | KN/M | 30 x 30 | 50 x 50 | 100 x 100 | 120 x 120 |
Elongation at Ultimate | % | <3 | <3 | <3 | <3 |
Roll Width | M | 5.95 Max. | |||
Roll Length | M | 50 - 100 | |||
